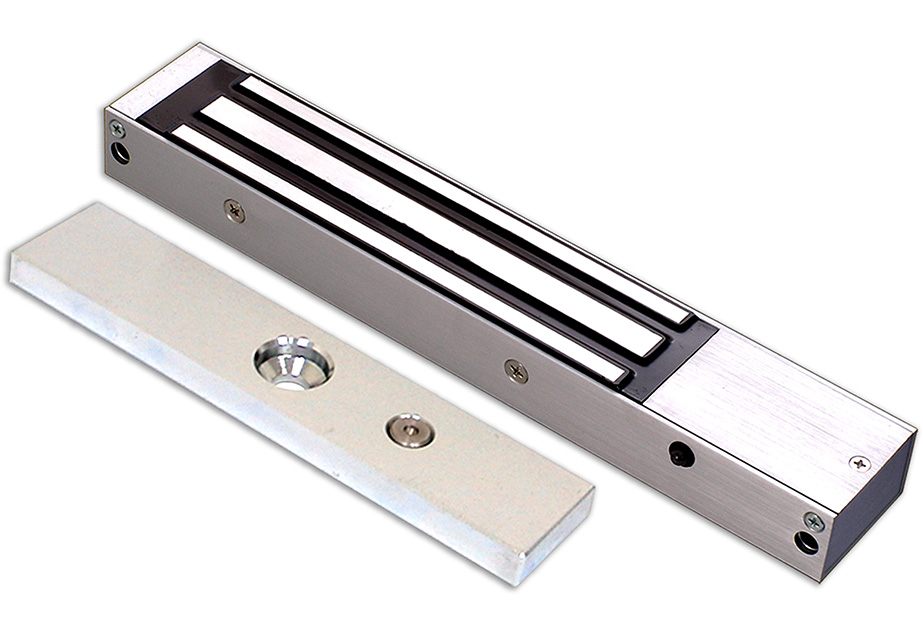

EM 300M Magnetic Lock – Indoor- Bond Sensor Output

1 Puan2 Puan3 Puan4 Puan5 Puan (7 oy, 5 üzerinden 4.43 puan)
Loading...

EM-300M series are designed for surface mount on out-swing doors. The maglocks can be configured to mount on inswing and glass doors with optional LZ- and U-shaped brackets. Other optional operation features include magnetic bond sensor, relock time delay, door status monitor, and buzzer alarm.

   PDF English

• Surface Mount,
• 12-24 V DC operating Voltage,
• High reliabilitiy
• Silent operation
• Bracket choises for in or out swing doors



Operating principle Fail safe
Operating Voltage 12 V / 24 V DC
Current draw 500mA/12VDC; 250mA/24VDC (at temperature 20ºC)
Holding Force 600 lbs (272 kg)
Maksimum Tutma Aralığı 3 mm
Casing Aluminyum anoside casing
Bond sensor output Yes


Applications

Indoor Outswing Door Electromagnetic Lock Installation Sample Indoor Outswing Door Electromagnetic Lock Installation Sample - Enlarged

L Bracket (Surface Mount)

Indoor Outswing Surface Mount (L-Bracket) Electromagnetic Lock Installation Sample Indoor Outswing Surface Mount (L-Bracket) Electromagnetic Lock Installation Sample - Enlarged

LZ Bracket (Surface Mount)

Indoor Inswing Surface Mount (LZ-Bracket) Electromagnetic Lock Installation Sample Indoor Inswing Surface Mount (LZ-Bracket) Electromagnetic Lock Installation Sample - Enlarged

Special L Bracket (Surface Mount)

Indoor Outswing Surface Mount (Special L-Bracket) Electromagnetic Lock Installation Sample Indoor Outswing Surface Mount (Special L-Bracket) Electromagnetic Lock Installation Sample - Enlarged

Special LZ Bracket (Surface Mount)

Indoor Inswing Surface Mount (Special LZ-Bracket) Electromagnetic Lock Installation Sample Indoor Inswing Surface Mount (Special LZ-Bracket) Electromagnetic Lock Installation Sample - Enlarged

U Brcaket (For Frameless Glass Door)

Indoor U Bracket (Surface Mount) Electromagnetic Lock Installation Sample Indoor U Bracket (Surface Mount) Electromagnetic Lock Installation Sample - Enlarged
