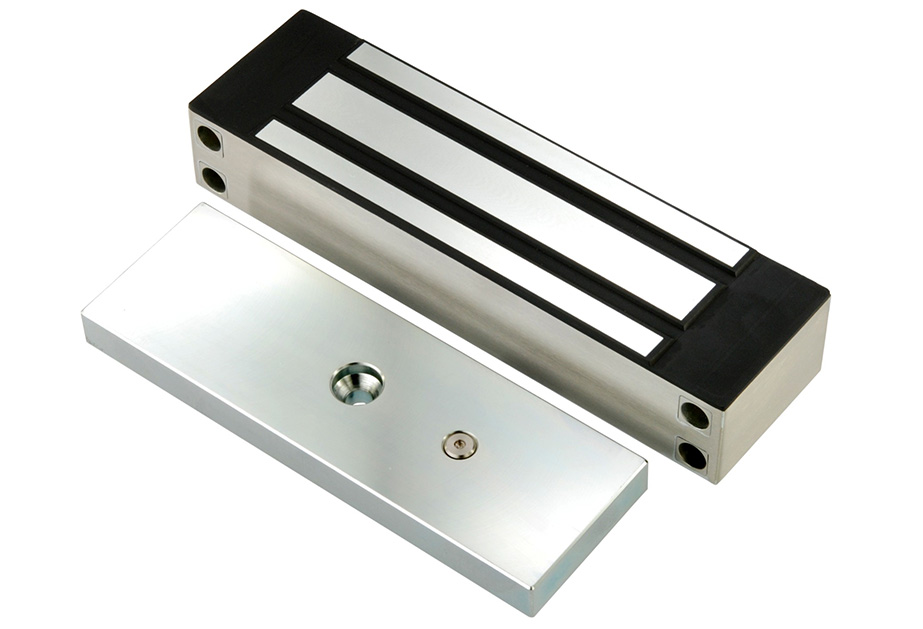

EM 10010ST Magnetic Lock – Weatherproof

1 Puan2 Puan3 Puan4 Puan5 Puan (6 oy, 5 üzerinden 4.83 puan)
Loading...

The series of the micro waterproof magnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with architecturally superior appearance. All of them is made with stainless steel housing and sealed with fire resistance compliant epoxy for totally water-repellent. Suitable with all access control systems.

   PDF English

• Surface Mount,
• 12 V /24 V DC operating Voltage,
• High reliabilitiy
• Silent operation,
• Stailess steel casing,

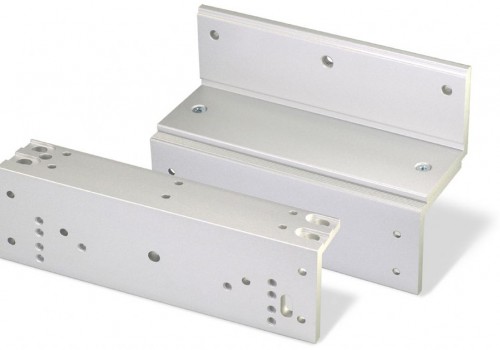

• Bracket choises for in or out swing doors

Operating priciple Fail safe
Operating Voltage 12 V / 24 V DC
Current Draw 500mA/12VDC; 250mA/24VDC (at temperature 20ºC)
Holding Force  1200 lbs (545 kg)
Max. holding space 3 mm
Casing Stainless Steel
Bond Sensor Output No
